Onsite Calibration
Calibration is the basis for trustful measurement data. Calibration can also mean long downtime of your test equipment.
Calibrating a MFC or electronic load can take up to 6 - 8 weeks and sometimes requires international shipping of components. That's why TIRRON offers onsite calibration of all relevant sensors and actuators, which on average takes 2 days per station.
We have developed and improved our onsite calibration process over the past 20 years and are only using ISO17025 calibrated references.

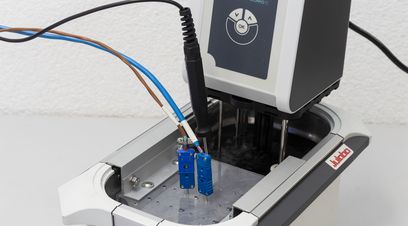

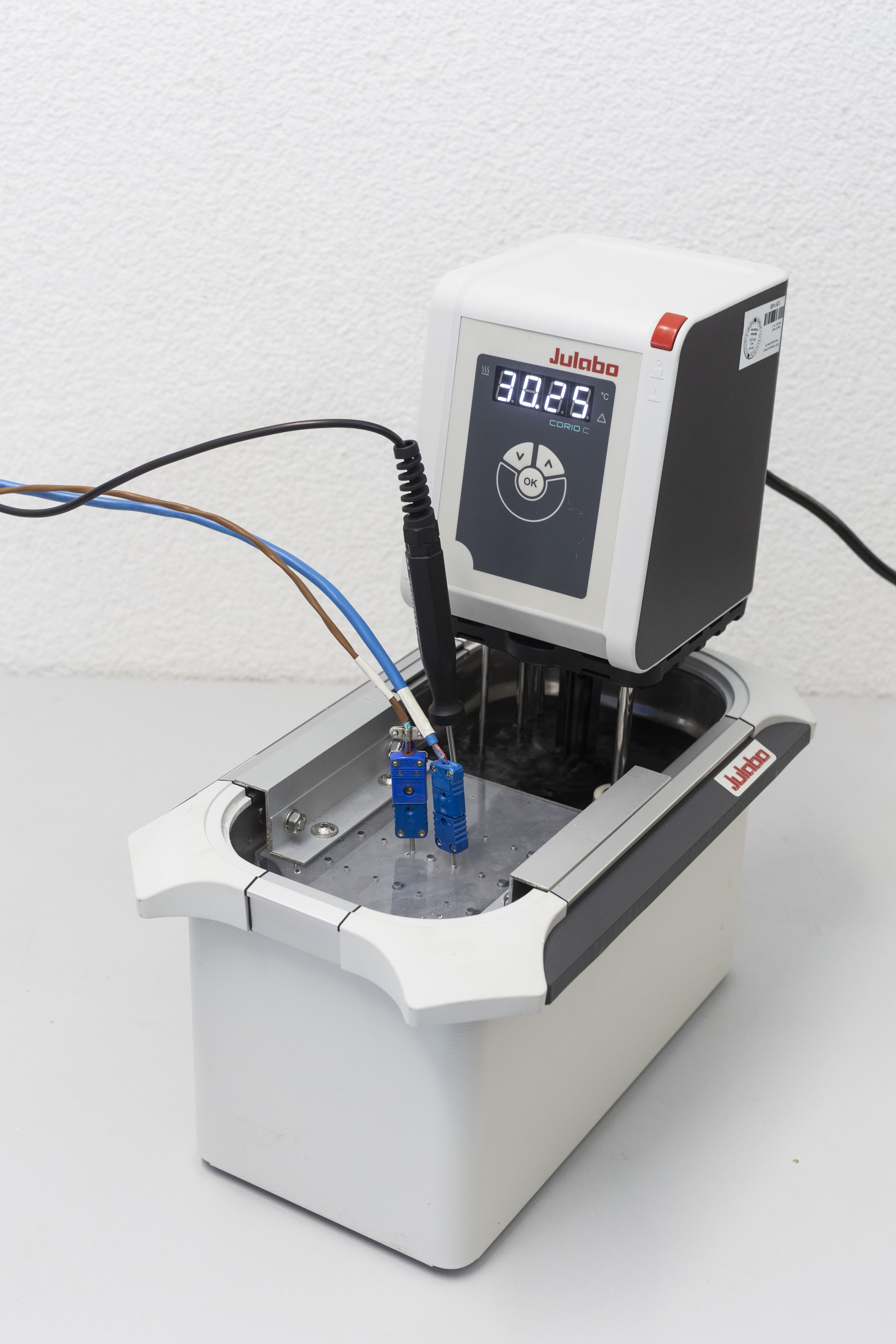

Calibration of thermocouples up to 100°C

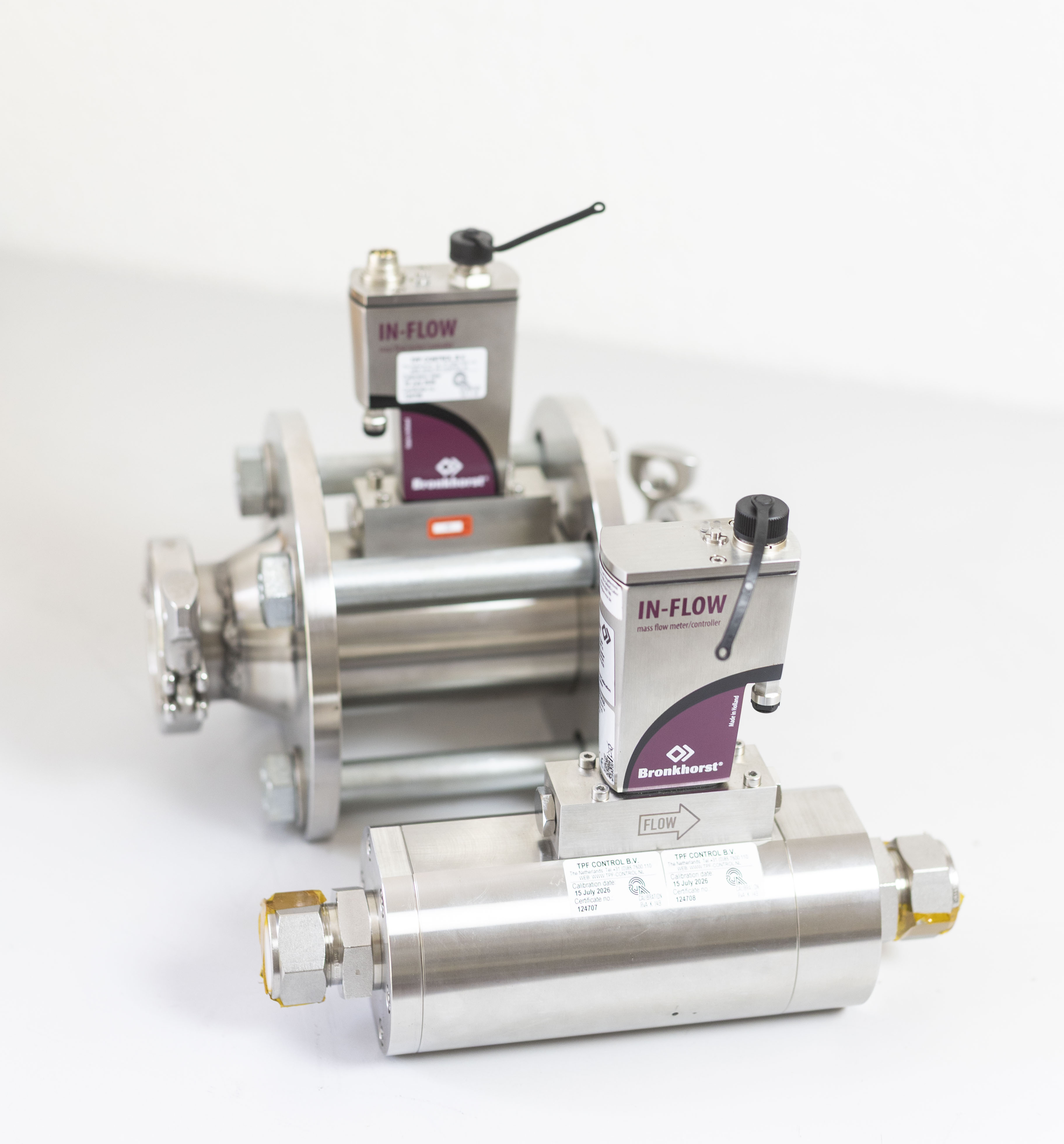

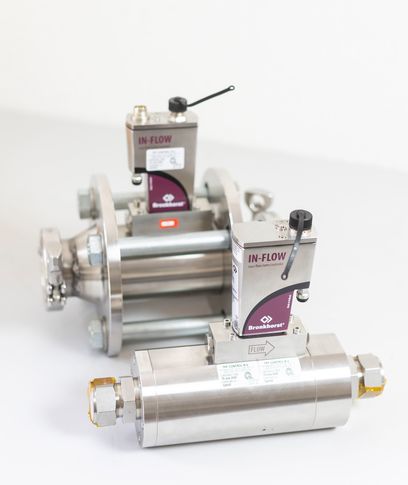

MFM and MFC calibration from 20Nml/min up to 8000Nl/min
MFCs will be calibrated in their installed position. MFCs will be calibrated with customer gas infrastructure, including its limitations. Available for H2, N2, O2, Air and CO2 (O2 and CO2 with Bronkhorst correction factors). With TIRRON calibration certificates.
Does not include repair of MFCs, which cannot be calibrated. (MFC can not be calibrated within our tolerances)
TIRRON Reference is calibrated at ISO 17025 certified laboratory with 1 year calibration interval. With 5 calibration points: 0, 20, 40, 60, 80 and 100% FS.
Tolerance and Uncertainty:
20nmlpm - 1000 nlpm:
-Tolerance: 1 % Measurement + 0.2 % Full Scale of DUT
-Uncertainty: 0.5 % Measurement + 0.1% Full Scale of used References

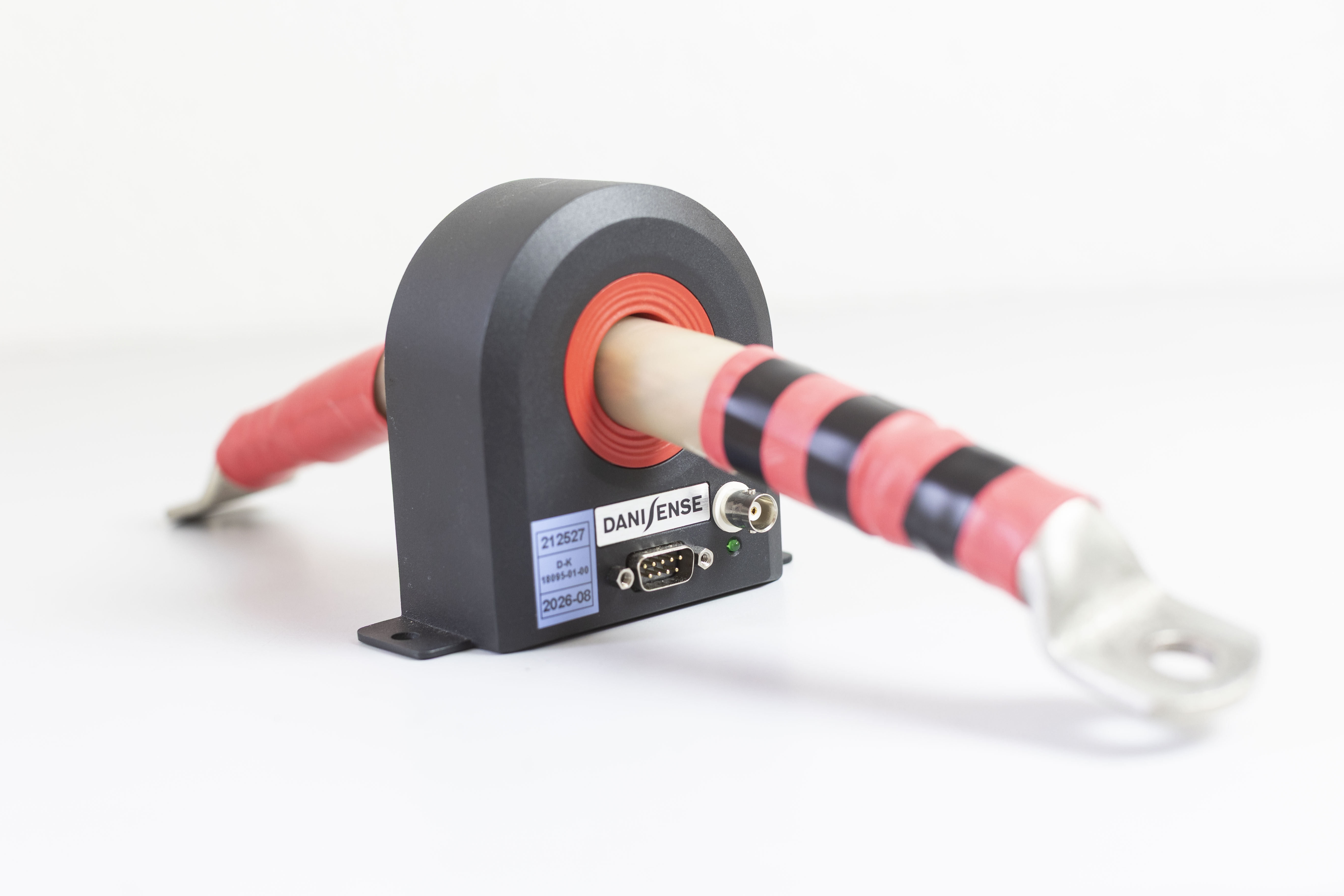

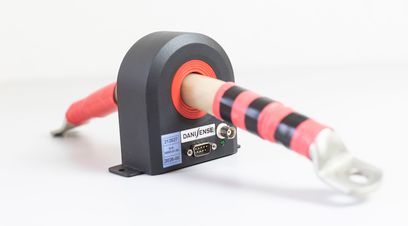

Load and Powersupply calibration up to 1000A, CVM calibration +/- 3mV

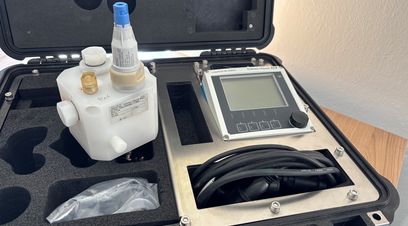

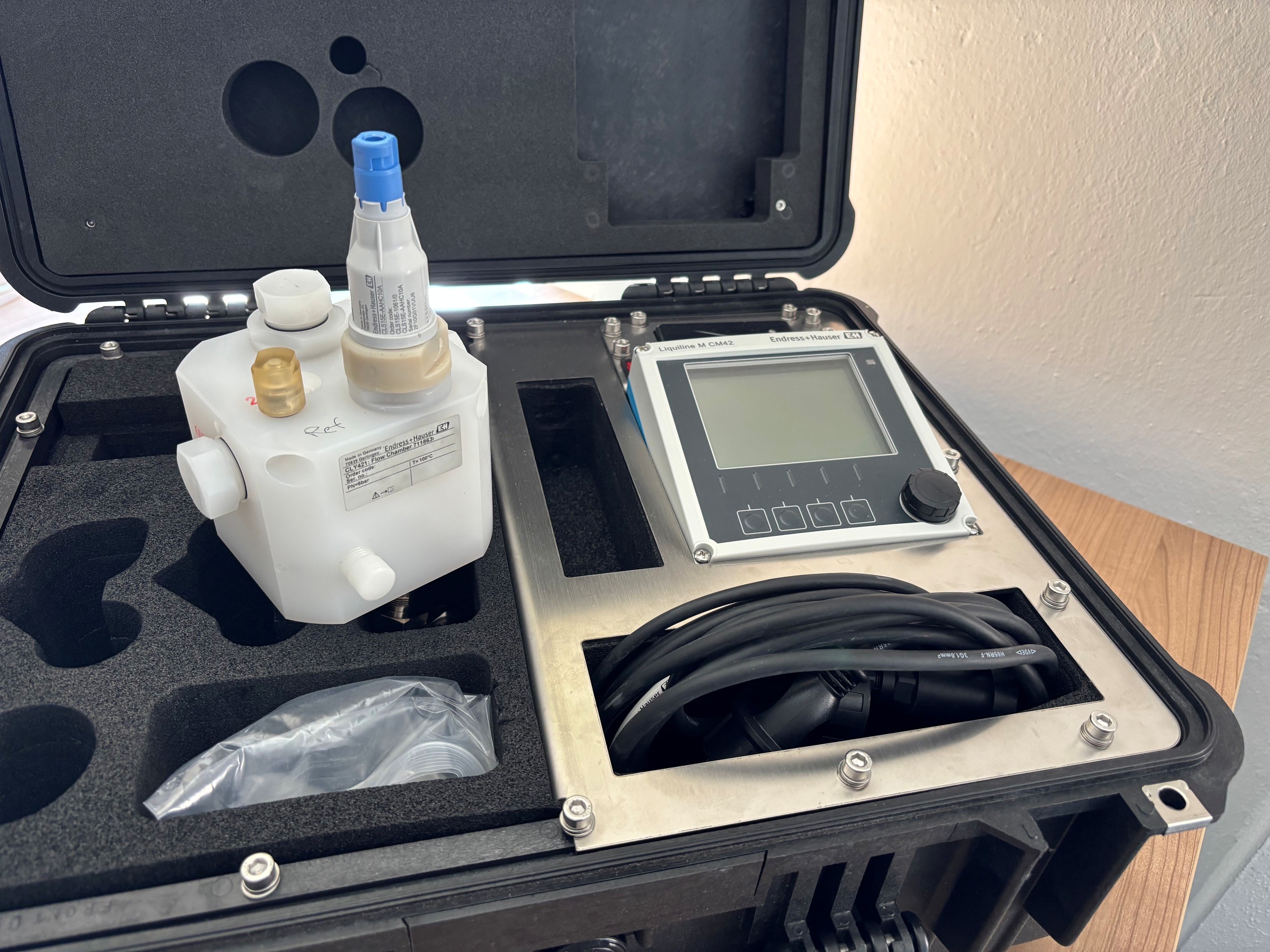

Resistivity validation

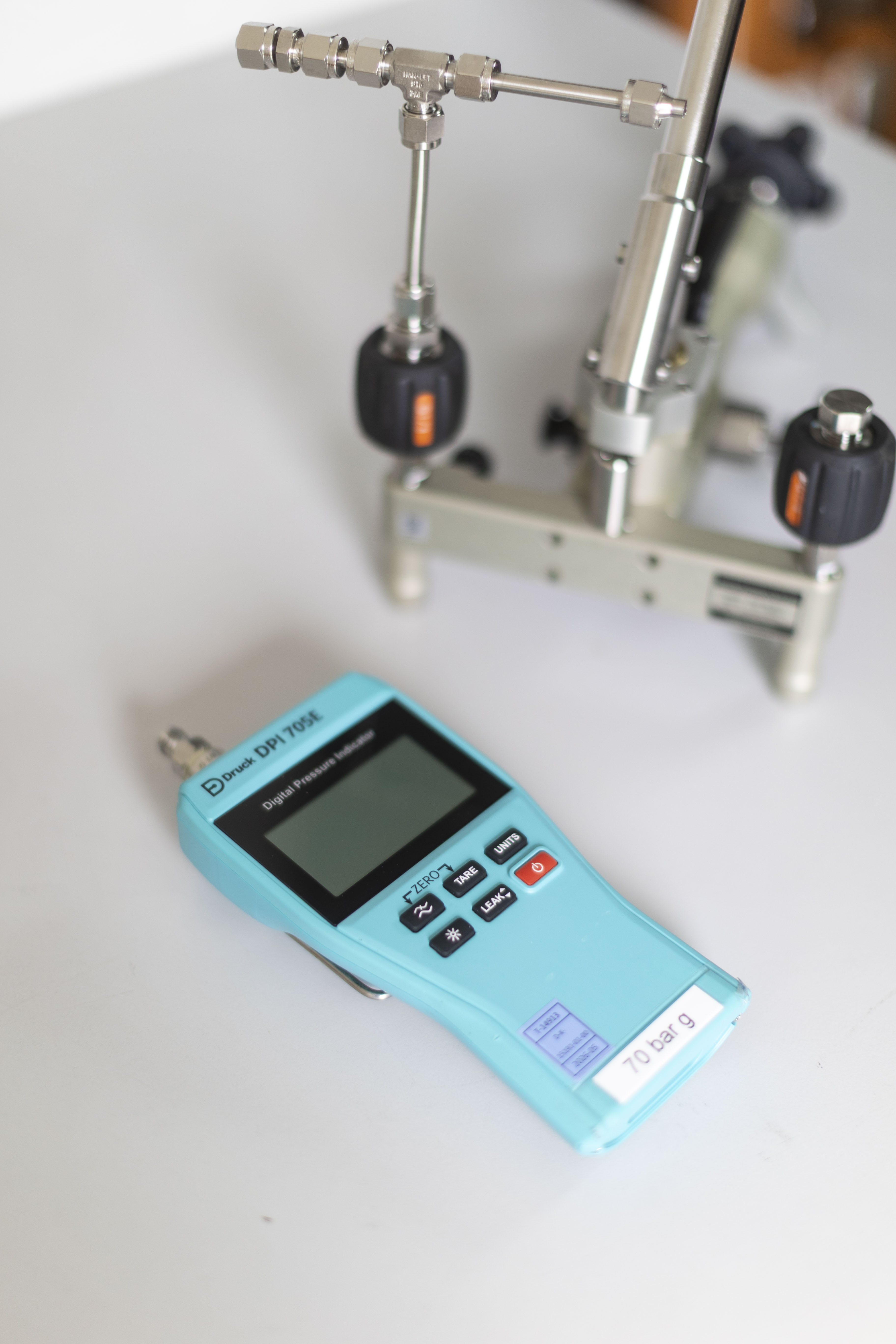

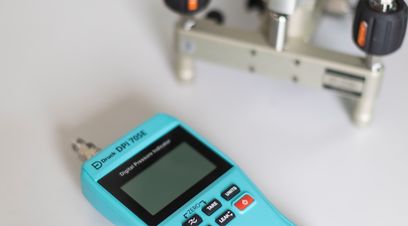

0 - 70 barg
We create calibration certificates for all calibrates devices.
